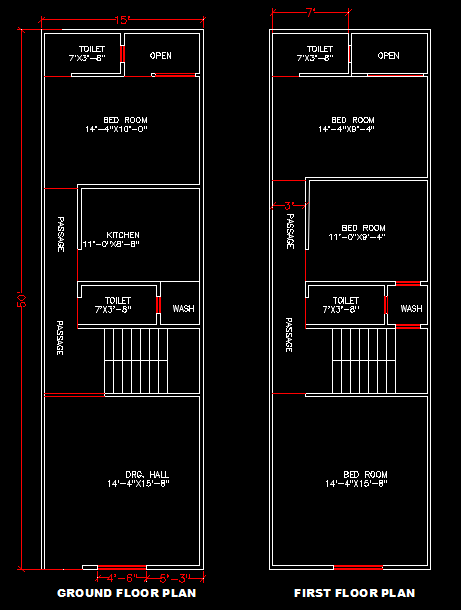

The enclosed image shows the architectural floor plans for a two-story
house. The plans are divided into two sections: the ground floor plan and the
first floor plan. Each floor plan includes detailed measurements for each room
and space within the house.
Ground Floor Plan:
- Dimensions: 15′ x 49′
- Rooms and
Spaces: - Drawing Hall: 14′ –
4″ x 15′ – 8″ - Passage: Connects the
drawing hall to other rooms. - Kitchen: 11′ –
0″ x 8′ – 8″ - Bedroom: 14′ –
4″ x 10′ – 0″ - Toilets: Two toilets,
each measuring 7′ x 3′ – 8″ - Wash Area: Adjacent to
one of the toilets. - Open Area: Adjacent to
the bedroom.
First Floor Plan:
- Dimensions: 15′ x 49′
- Rooms and
Spaces: - Bedroom 1: 14′ –
4″ x 15′ – 8″ - Passage: Connects the
bedroom to other rooms. - Bedroom 2: 11′ –
0″ x 9′ – 4″ - Bedroom 3: 14′ –
4″ x 9′ – 4″ - Toilets: Two toilets,
each measuring 7′ x 3′ – 8″ - Wash Area: Adjacent to
one of the toilets. - Open Area: Adjacent to
one of the bedrooms.
 |
| House plan free download with Detailed estimate and Bank loan |
This image is interesting and relevant as it provides a clear and
detailed layout of a two-story house, which can be useful for architects,
builders, and potential homeowners in understanding the spatial arrangement and
dimensions of the house.
Tentative Estimate of Material
Required and Cost in INR:
- Cement: 500 bags @
₹350/bag = ₹175,000 - Sand: 20 tons @
₹1,500/ton = ₹30,000 - Aggregate: 30 tons @
₹1,200/ton = ₹36,000 - Bricks: 50,000 bricks
@ ₹5/brick = ₹250,000 - Steel: 5 tons @
₹50,000/ton = ₹250,000 - Tiles: 2,000 sq.ft @
₹50/sq.ft = ₹100,000 - Wood: ₹150,000
- Plumbing and
Electrical: ₹200,000 - Paint: ₹50,000
- Miscellaneous: ₹100,000
Total Estimated Cost: ₹1,341,000
 |
| House plan free download with Detailed estimate and Bank loan |
and Labour:
- Cement:
- Rate: ₹350/bag
- Quantity: 500
bags - Total:
₹175,000 - Sand:
- Rate:
₹1,500/ton - Quantity: 20
tons - Total: ₹30,000
- Aggregate:
- Rate:
₹1,200/ton - Quantity: 30
tons - Total: ₹36,000
- Bricks:
- Rate: ₹5/brick
- Quantity:
50,000 bricks - Total:
₹250,000 - Steel:
- Rate:
₹50,000/ton - Quantity: 5
tons - Total:
₹250,000 - Tiles:
- Rate:
₹50/sq.ft - Quantity:
2,000 sq.ft - Total:
₹100,000 - Wood:
- Total:
₹150,000 - Plumbing and
Electrical: - Total:
₹200,000 - Paint:
- Total: ₹50,000
- Miscellaneous:
- Total:
₹100,000
Bar Bending Schedule for Concrete
Material:
- Footings:
- Diameter: 12mm
- Quantity: 500
kg - Columns:
- Diameter: 16mm
- Quantity:
1,000 kg - Beams:
- Diameter: 12mm
- Quantity: 800
kg - Slabs:
- Diameter: 10mm
- Quantity: 700
kg
Shuttering:
- Plywood:
- Quantity: 100
sheets - Rate:
₹1,000/sheet - Total:
₹100,000 - Props:
- Quantity: 200
units - Rate:
₹500/unit - Total:
₹100,000 - Beams and
Columns: - Quantity: 50
units - Rate:
₹1,500/unit - Total: ₹75,000
Total Shuttering Cost: ₹275,000
Bank Loan Format of Estimate:
|
Item Description |
Quantity |
Unit |
Rate (INR) |
Amount (INR) |
|
Cement |
500 |
Bags |
350 |
175,000 |
|
Sand |
20 |
Tons |
1,500 |
30,000 |
|
Aggregate |
30 |
Tons |
1,200 |
36,000 |
|
Bricks |
50,000 |
Units |
5 |
250,000 |
|
Steel |
5 |
Tons |
50,000 |
250,000 |
|
Tiles |
2,000 |
Sq.ft |
50 |
100,000 |
|
Wood |
– |
– |
– |
150,000 |
|
Plumbing and |
– |
– |
– |
200,000 |
|
Paint |
– |
– |
– |
50,000 |
|
Miscellaneous |
– |
– |
– |
100,000 |
|
Shuttering |
– |
– |
– |
275,000 |
Total Estimated Cost: ₹1,666,000
This comprehensive estimate provides a detailed breakdown of the
materials, labor, and associated costs required for constructing the house as
per the provided floor plan. It also includes a bar bending schedule for
concrete material and shuttering details. For a more accurate and tailored
estimate, it is advisable to consult with a professional contractor or
architect.
