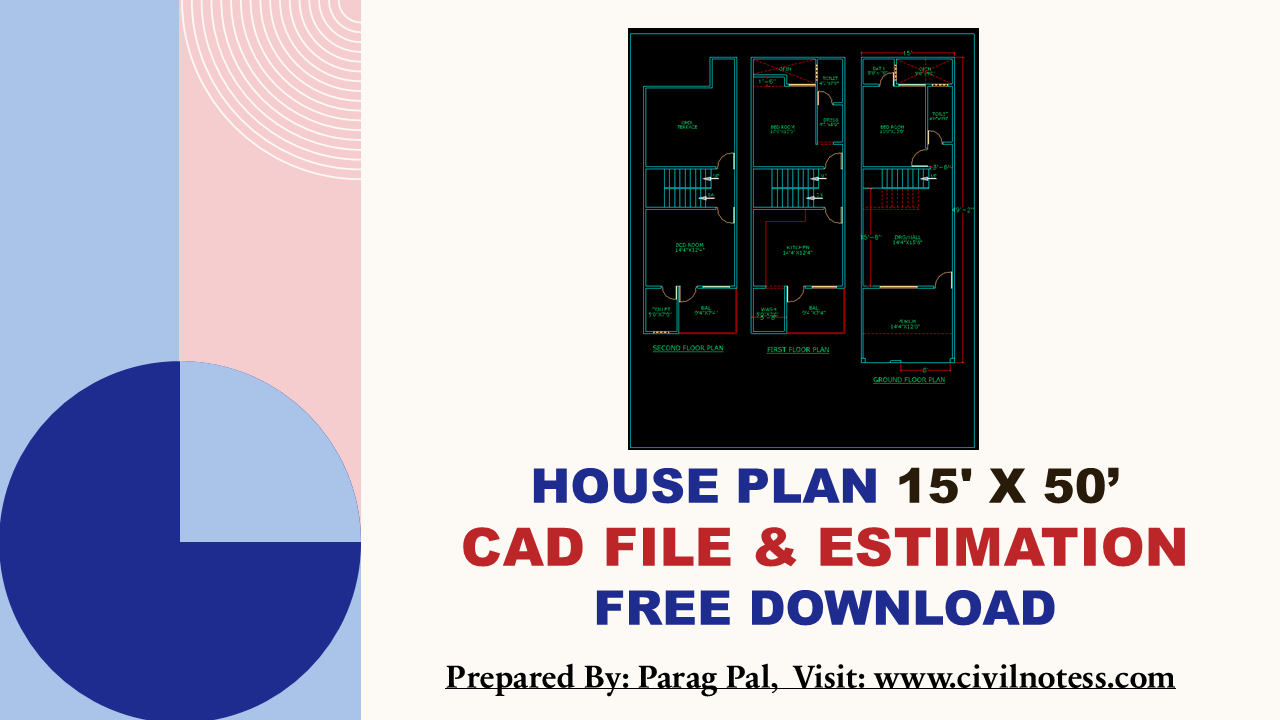

This detailed architectural floor plan provides a clear and precise
layout for a multi-story home, encompassing the ground floor, first floor, and
second floor. Each floor is meticulously designed to optimize space and
functionality, ensuring a comfortable and efficient living environment.
 |
| House plan free download with Detailed estimate |
Ground Floor Plan:
- Drawing Hall: 14’4″ x
15’9″ - Kitchen: 14’4″ x
12’0″ - Staircase: Centrally
located for easy access to upper floors
First Floor Plan:
- Bedroom 1: 14’4″ x
12’4″ - Toilet: 4’6″ x
6’0″ - Dress Room: 4’6″ x
6’0″ - Balcony: 9’2″ x
7’4″ - Wash Area: 5’0″ x
3’6″
Second Floor Plan:
- Bedroom 2: 14’4″ x
12’4″ - Toilet: 5’0″ x
7’0″ - Open Terrace: Spacious area
for outdoor activities - Balcony: 9’2″ x
7’4″
 |
| House plan free download with Detailed estimate |
This house plan is designed to provide ample living space while
maintaining a compact and efficient layout. The inclusion of balconies and an
open terrace adds to the aesthetic appeal and functionality of the home,
offering outdoor spaces for relaxation and entertainment.
Tentative Estimate of Material
Required and Cost in INR
Material Estimate:
- Cement: Approximately
500 bags - Bricks: Approximately
50,000 bricks - Steel: Approximately
5 tons - Sand: Approximately
20 tons - Gravel: Approximately
30 tons - Wood (for
doors, windows, and frames): Approximately 2 cubic meters - Tiles (for
flooring and walls): Approximately 2000 square feet - Paint: Approximately
200 liters - Plumbing
materials: Pipes, fittings, fixtures - Electrical
materials: Wires, switches, sockets, lighting fixtures
Cost Estimate (in INR):
- Cement: ₹200,000 (₹400
per bag) - Bricks: ₹300,000 (₹6
per brick) - Steel: ₹350,000
(₹70,000 per ton) - Sand: ₹40,000
(₹2,000 per ton) - Gravel: ₹60,000
(₹2,000 per ton) - Wood: ₹100,000
(₹50,000 per cubic meter) - Tiles: ₹300,000 (₹150
per square foot) - Paint: ₹60,000 (₹300
per liter) - Plumbing
materials: ₹100,000 - Electrical
materials: ₹100,000
Total Estimated Cost: ₹1,610,000
This estimate provides a rough idea of the materials required and their
associated costs. Actual costs may vary based on location, availability of
materials, and labor charges. It is advisable to consult with a professional
contractor for a more accurate and detailed estimate.
Download the House Plan -15′ X 50′-CAD File-FREE Download
